Winner Offshore Offshore Reefer Container: A Specialist in Cold Chain Transportation Under Extreme Environments

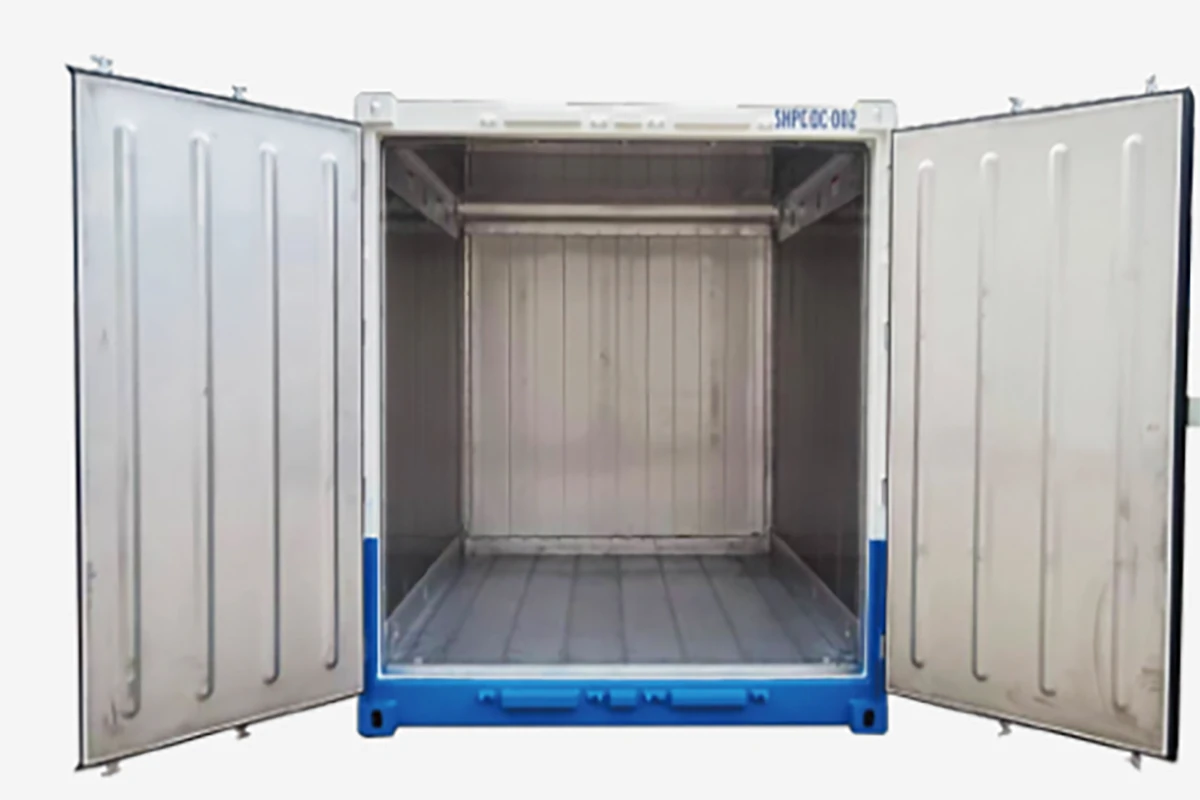

Winner Offshore's offshore reefer container (offshore standard container) is specially designed for marine engineering and global cold chain logistics. Its design, production, and inspection strictly comply with the ISO 10855 international container standards and DNV 2.7-1 offshore equipment specifications, ensuring structural stability and global transportation compliance from the source.

In terms of anti-corrosion performance, the container is coated with high-film-thickness paint (total dry film thickness 200-300μm). Verified by the salt spray test (ISO 9227), it can resist salt spray erosion for more than 2000 hours, forming a long-term protective barrier. This significantly enhances its rust resistance, with a service life of over 15 years, making it perfectly suitable for the marine environment with high salt spray and high humidity.

The temperature control covers a wide range from -40℃ to 30℃, which can meet the long-distance transportation needs of deep-frozen, frozen, refrigerated, and heated materials. The core refrigeration system can be optionally equipped with international first-tier brands:

Thermo King TH450/MP-5000 unit: Equipped with an air-jet enthalpy-increasing compressor and electronic expansion valve, with a cooling capacity of 20kW, temperature control accuracy of ±0.25℃, and support for remote APP monitoring and energy consumption tracking;

Daikin unit: Adopts corrosion-resistant materials, which can still operate stably at an extreme low temperature of -40℃, and the efficiency of the condensing fan is increased by 30%;

Carrier unit: Features intelligent defrosting and fault self-diagnosis functions to ensure the reliability of continuous operation.

The power solution provides an option of a hanging generator, which adopts a modular design and is directly mounted at the bottom of the container, saving up to 20% of internal space. It also supports 380V/440V multi-voltage input, adapting to offshore platform or port shore power systems.

Lifting safety is guaranteed by 4-leg/5-leg wire rope slings that meet the DNV 2.7-1 standard, with a single sling breaking force ≥50 tons. The supporting Green Pin shackles are certified by EN 13889, with a safety factor of 6 times the working load limit, suitable for complex lifting scenarios such as offshore platforms and ports.

Application scenarios include material storage on offshore oil and gas platforms, seafood transportation in ocean-going fisheries, sample preservation in deep-sea scientific research, and cold chain distribution of medical supplies. For example, the interior of the container uses food-grade stainless steel lining and full-aluminum air ducts, which can be directly loaded and unloaded by forklifts, meeting FDA hygiene standards; in the field of scientific research, its -80℃ deep-freezing mode can simulate the deep-sea environment, and real-time temperature and pressure data can be recorded with a multi-parameter monitor.

In addition, the product supports wide-temperature operation from -20℃ to 55℃ and can be customized with configurations such as ventilation systems and explosion-proof lighting as needed. With standardized compliance design and modular integration capabilities, Winner Offshore's offshore reefer container has become a benchmark solution for maritime cold chain transportation.
