DNV Offshore Reefer Container is a refrigerated transportation unit specially designed for extreme environments such as offshore oil and gas platforms and drilling ships. It needs to pass the strict certification of DNV GL (such as the DNV 2.7-1 standard) to ensure its safety and reliability under conditions like low temperature, high humidity, and salt spray corrosion. The following is a detailed analysis of its core technical requirements, certification processes, and industry applications:

I. Core Technical Requirements and Design Features

1. Materials and Structures

Corrosion-resistant materials: Adopting 316 stainless steel or aluminum alloy frames, with the surface sprayed with high weather-resistant coatings (such as the Hempadur series). It can pass the salt spray test (ASTM B117) for ≥1000 hours, and its service life can reach more than 20 years.

Insulation system:

Polyurethane (PU) foam is used for filling, with a thermal conductivity coefficient ≤ 0.022 W/(m・K), maintaining temperature stability in an environment ranging from -60 °C to +50 °C.

The double-layer sealed door design (with an IP65 protection level) reduces cold leakage. For example, the MGS IceStorm series can reduce the heat leakage rate by 30% through special sealing strips.

2. Temperature Control and Energy Systems

Temperature range: It supports precise control within the range of -60 °C to +20 °C. For example, the 10-foot refrigerated container of TITAN is equipped with a Thermo King Magnum refrigeration unit, which can quickly cool down to -35 °C.

Intelligent monitoring: Integrated with a microprocessor control system to monitor temperature, humidity, and CO₂ concentration in real time, and transmit data remotely through satellite communication (such as MGS Satellite). It can automatically alarm in case of abnormalities.

Energy solutions:

Shore power mode: 380V/440V three-phase power supply, with an energy efficiency ratio (EER) ≥ 3.5.

Off-grid mode: Optionally equipped with a diesel generator (such as the 15kW Clip-On Genset), with a 15% improvement in fuel efficiency.

3. Lifting and Safety Designs

Lifting points and securing:

The top lifting lugs meet the strength requirements of the appendix D of DNV GL. The stress distribution during lifting is verified to be uniform through finite element analysis, and the allowable load is ≥ 1.25 times the rated weight.

The bottom fork slots are compatible with ISO standards, enabling quick docking with platform forklifts or cranes, and reducing the loading and unloading time by 40% compared with traditional containers.

Anti-seismic and anti-tipping: Passing the inclination tests (rolling 22.5°, pitching 7.5°) of DNV GL, and the internal cargo securing system (such as adjustable straps) ensures that there is no displacement in severe sea conditions.

II. Certification Processes and Testing Standards

1. Certification Basis

DNV 2.7-1 standard: Covering the whole process of design, manufacturing, and testing, requiring the container to pass static load tests (stacking 3 layers), dynamic impact tests (drop height of 0.6 meters), and vibration tests (5 - 50Hz).

Additional certifications:

EN 12079: The European standard, highly compatible with DNV 2.7-1, focusing on the securing system and environmental adaptability.

ISO 10855: The international standard, integrating the norms of DNV, ABS, etc., ensuring global universality.

ATEX certification: When transporting dangerous goods, it needs to meet the explosion-proof requirements. For example, the refrigerated containers of Klinge Corporation are equipped with explosion-proof electrical systems.

2. Testing Items

Temperature performance tests:

Uniformity test: Under the working condition of -30 °C, the temperature difference inside the container is ≤ 2 °C (ISO 1496-2 standard).

Recovery time test: After the door is opened for 3 minutes, the time for the temperature to recover to the set value is ≤ 15 minutes.

Environmental simulation tests:

Salt spray test: Spray with 5% NaCl solution for 1000 hours, and there is no rust on the surface.

Damp-heat test: Operate in an environment with 85% humidity and +50 °C for 72 hours, and there is no malfunction in the circuit system.

III. Industry Applications and Typical Cases

1. Core Scenarios in the Oil and Gas Industry

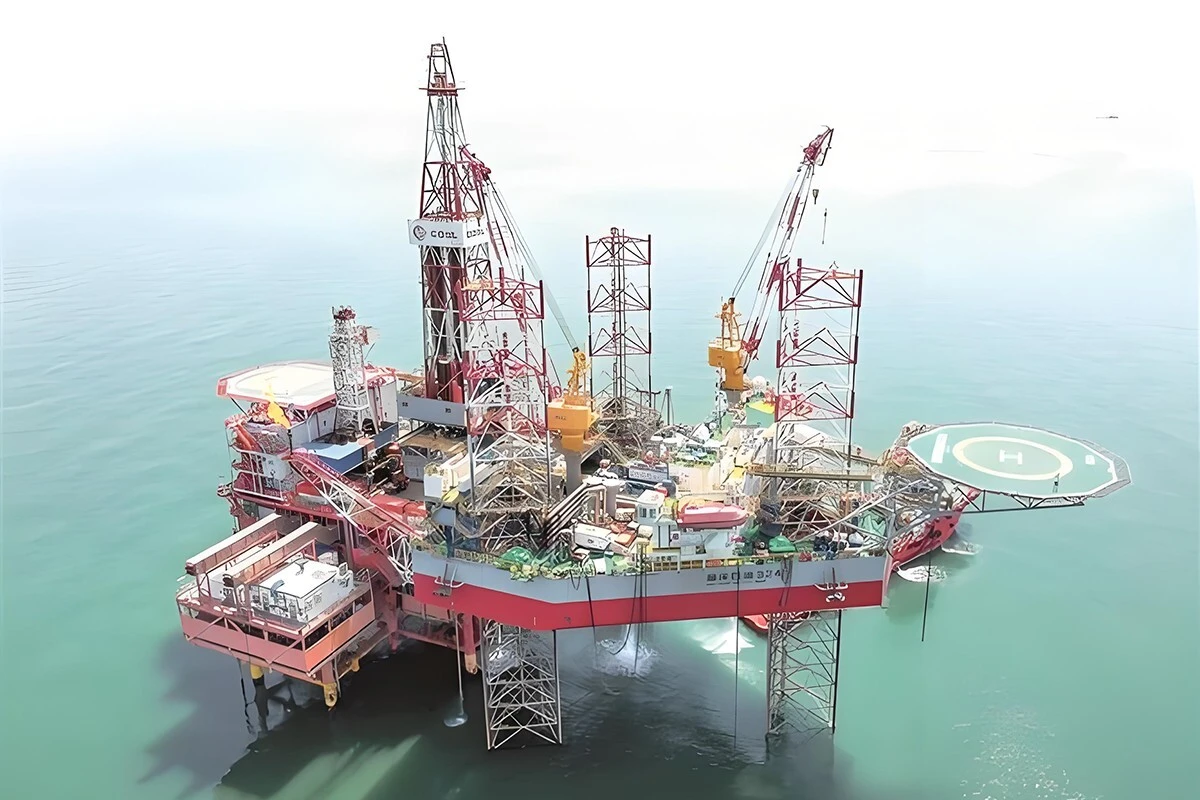

Material supply for drilling platforms:

Transporting frozen foods, pharmaceuticals, etc. For example, the DNV refrigerated containers used in the North Sea oil fields can maintain -18 °C for 72 hours of off-grid operation, ensuring the material supply for remote platforms.

Deep-sea scientific research and rescue:

Storing biological samples (such as polar ice cores), with a temperature control accuracy of ±0.5 °C, meeting the WHO cold chain transportation standards.

2. Extreme Environment Cases

Arctic projects:

An LNG platform adopts MGS IceStorm refrigerated containers to transport frozen spare parts in an environment of -60 °C. It has passed the low-temperature anti-freezing test at -70 °C, ensuring the availability of equipment in extremely cold conditions.

Tropical sea areas:

The oil fields in Southeast Asia use DNV refrigerated containers with humidity control (RH ≤ 50%) to prevent electronic equipment from getting damp, extending the maintenance cycle from once a month to once a quarter.

3. Multimodal Transport Solutions

Optimization of sea-land transfer:

The 10-foot DNV refrigerated containers can be combined with 20-foot ISO containers for transportation. For example, the 10-foot containers of Container World Offshore, through modular design, can increase the single transportation volume by 30%.

Helicopter lifting:

With a lightweight design (such as the MGS IceWave series with a self-weight of ≤ 3.2 tons), it can be directly lifted by a Sikorsky S-92 helicopter to the platform, shortening the transfer time by 50%.

IV. Cost-effectiveness and Industry Trends

1. Life Cycle Cost

Initial investment: The price of DNV refrigerated containers is 20 - 30% higher than that of ordinary ISO refrigerated containers, but the maintenance cost is reduced by 40% (for example, the anti-corrosion cost of 316 stainless steel is 60% lower than that of carbon steel).

Energy consumption optimization: Adopting variable frequency compressors and LED lighting, the annual power consumption is reduced by 25% compared with traditional models. For example, the ECO-Drive technology of Thermo King can reduce fuel consumption by 15%.

2. Directions of Technological Innovation

Intelligent upgrading:

Integrating Internet of Things sensors to monitor the status of goods in real time and predict equipment failures (such as early warning of abnormal temperature of the refrigeration unit bearings), improving the maintenance efficiency by 50%.

Integration of green energy:

Piloting off-grid solutions combining solar photovoltaic panels and lithium batteries, achieving 70% energy self-sufficiency in areas with sufficient sunlight and reducing diesel consumption.

V. Certification Difficulties and Coping Strategies

1. Material Selection

It is necessary to strictly screen steel materials that meet the requirements of DNV GL (such as S355J2+N). It is recommended to cooperate with certified suppliers (such as SSAB) to avoid test failures due to substandard materials.

2. Testing Resources

The dynamic impact test requires professional laboratories (such as third-party institutions certified by DNV GL). Small and medium-sized enterprises can jointly share the costs. For example, TITAN and Thermo King cooperate to share testing facilities.

3. Design Optimization

Using simulation tools such as ANSYS to simulate the stress distribution during lifting and optimize the position of lifting lugs to reduce deformation. For example, Klinge Corporation has reduced the stress concentration of lifting lugs by 20% through simulation.

Summary

DNV Offshore Reefer Container is the "gold standard" for offshore cold chain transportation. Its core value lies in ensuring safety and efficiency under complex sea conditions through the strict requirements of DNV 2.7-1 certification. For fields such as oil and gas and scientific research, choosing DNV-certified refrigerated containers is not only a compliance requirement but also a key measure to reduce operational risks and improve logistics efficiency. In the future, with the integration of intelligent and green energy technologies, DNV refrigerated containers will further promote the development of offshore cold chain transportation towards a low-carbon and efficient direction.
