DNV 2.7-1 Offshore Container is a standard for offshore transport containers developed by Det Norske Veritas (DNV), and its full name is DNVGL-ST-E271 (formerly DNV 2.7 - 1). This standard aims to regulate the design, manufacturing, inspection and certification requirements of containers used to transport goods, equipment and personnel in the offshore oil and gas industry, ensuring their safety, reliability and applicability in harsh offshore environments.
Winner Offshore containers are designed to offshore containers standards DNV-ST-E271 (DNV 2.7-1) and are certified by the authorities such as Det Norske Veritas (DNV) or Lloyd’s Register (LR) or Bureau Veritas (BV).

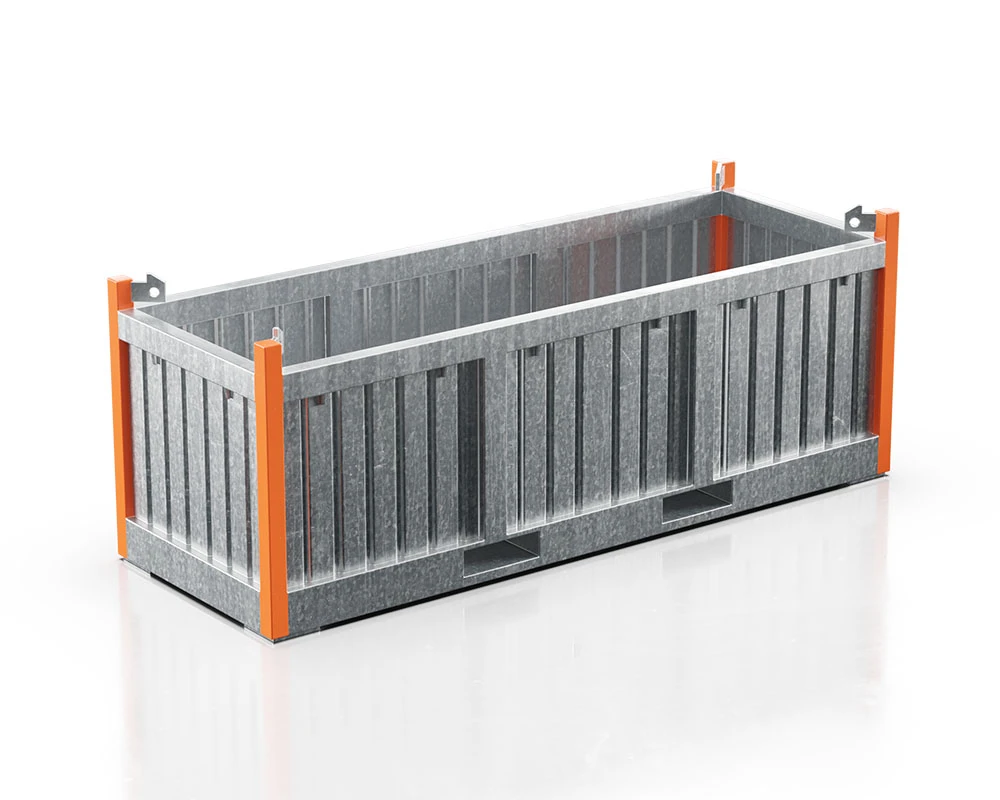

Designs such as cargo baskets, pipe baskets, personnel baskets and drum baskets are popular units to support each offshore life cycle stage, from seismic, exploration drilling, well services, field installation, and maintenance as well as the full life of the asset’s operation followed by the decommissioning phase..
We offer bespoke design or specific modifications as the most effective solutions for specialist applications.
Dimensions and Weights
VARIANT | EXTERNAL DIM. (MM) | TARE (KG) | PAYLOAD (KG) | MAX GROSS (KG) |
5FT X 4FT CARGO BASKET | 1500 x 1200 x 1400 | 800 | 4150 | 5000 |
8FT X 4FT CARGO BASKET | 2402 x 1184 x 1099 | 700 | 5000 | 5700 |
10FT X 4FT CARGO BASKET | 2964 x 1084 x 1099 | 790 | 6000 | 6790 |
12FT X 4FT CARGO BASKET | 3558 x 1220 x 1100 | 900 | 6000 | 6900 |
16FT X 4FT CARGO BASKET | 4828 x 1184 x 1070 | 1210 | 7000 | 8210 |
20FT X 4FT CARGO BASKET | 6000 x 1184 x 1093 | 1410 | 8000 | 9410 |
28FT X 4FT CARGO BASKET | 8486 x 1184 x 992 | 1880 | 10000 | 11880 |
34FT X 4FT CARGO BASKET | 10300 x 1200 x 1430 | 3070 | 11230 | 14300 |
40FT X 4FT CARGO BASKET | 12444 x 1184 x 1095 | 2620 | 12000 | 14620 |
43FT X 4FT CARGO BASKET | 13098 x 1184 x 1088 | 3000 | 10000 | 13000 |
46FT X 4FT CARGO BASKET | 13873 x 1184 x 1095 | 3080 | 12000 | 15080 |
53FT X 4FT CARGO BASKET | 16106 x 1184 x 1095 | 3420 | 12000 | 15420 |
60FT X 4FT CARGO BASKET | 18300 x 1212 x 1304 | 4320 | 11080 | 16000 |
67FT X 4FT CARGO BASKET | 20523 x 1283 x 915 | 8618 | 11794 | 20412 |
|
|
|
|
|
VARIANT | EXTERNAL DIM. (IN) | TARE (LBS) | PAYLOAD (LBS) | MAX GROSS (LBS) |
5FT X 4FT CARGO BASKET | 59.06 x 47.24 x 55.12 | 1760 | 9130 | 11000 |
8FT X 4FT CARGO BASKET | 94.57 x 46.61 x 43.27 | 1540 | 11000 | 12540 |
10FT X 4FT CARGO BASKET | 116.69 x 42.89 x 43.27 | 1738 | 13200 | 14938 |
12FT X 4FT CARGO BASKET | 144.02 x 48.03 x 43.31 | 1980 | 13200 | 15180 |
16FT X 4FT CARGO BASKET | 190.08 x 45.61 x 42.36 | 2652 | 15400 | 18052 |
20FT X 4FT CARGO BASKET | 236.22 x 46.61 x 43.03 | 3102 | 17600 | 20702 |
28FT X 4FT CARGO BASKET | 334.09 x 46.61 x 39.06 | 4136 | 22000 | 26136 |
34FT X 4FT CARGO BASKET | 400.51 x 47.24 x 56.30 | 6754 | 24708 | 31460 |
40FT X 4FT CARGO BASKET | 478.11 x 46.61 x 43.11 | 5754 | 26400 | 32154 |
43FT X 4FT CARGO BASKET | 514.09 x 46.61 x 42.83 | 6600 | 22000 | 28600 |
46FT X 4FT CARGO BASKET | 550.02 x 46.61 x 43.11 | 6776 | 26400 | 33176 |
53FT X 4FT CARGO BASKET | 634.09 x 46.61 x 43.11 | 7524 | 26400 | 33924 |
60FT X 4FT CARGO BASKET | 720.47 x 47.72 x 53.70 | 10824 | 24376 | 35200 |
67FT X 4FT CARGO BASKET | 807.99 x 50.51 x 36.02 | 18999.6 | 25945.8 | 44945.4 |
75FT X 4FT CARGO BASKET | 900 x 47.72 x 53.19 | 14224 | 31042 | 45266 |
92FT X 4FT CARGO BASKET | 1104.02 x 50.88 x 35.98 | 22958.8 | 22245.4 | 44904.4 |
